Let there be light.
« on: March 07, 2015, 05:22:39 pm »
I managed to get some lights wired up today. Grabbed some LED's from Princess Auto and picked up the stern light from Dan's Nautical...he's ordered a mount for it, which will be in by Tuesday...great service.

I installed the switch panel last week...was a bit nervous cutting into the new PA, but it turned out perfect.






Offline Red Rocket

  • Old School
  • *****
  • Posts: 708
  • Karma: 10
Re: Let there be light.
« Reply #1 on: March 07, 2015, 05:31:58 pm »
What are all of those switches for?
Don

Hobie Outback
Toronto

Offline Mtmouse

  • Seasoned Angler
  • ****
  • Posts: 195
  • Karma: 11
Re: Let there be light.
« Reply #2 on: March 07, 2015, 05:46:23 pm »
What are all of those switches for?

Cockpit lights, stern light and fishfinder. I have the USB charge port for my iPad mini...leaves a couple extra switches for future add-ons...if needed.



Offline John Gibson

  • Administrator
  • Old School
  • *****
  • Posts: 2546
  • Karma: 29
  • Team CKA
    • Canadian Kayak Anglers
Re: Let there be light.
« Reply #3 on: March 07, 2015, 05:46:44 pm »
Im diggin the lighting... would make for a better experience when looking for something in the dark haha.

How much extra weight does it add to the boat?


Ocean Kayak Pro-Staff Member
Aquabound Pro-Staff
Scotty Pro-Staff

Kayaks:
Ocean Kayak Trident Ultra 4.3

Follow CKA on Twitter  @CANkayakanglers

Offline Mtmouse

  • Seasoned Angler
  • ****
  • Posts: 195
  • Karma: 11
Re: Let there be light.
« Reply #4 on: March 07, 2015, 05:48:57 pm »
Im diggin the lighting... would make for a better experience when looking for something in the dark haha.

How much extra weight does it add to the boat?

Maybe 1.5lbs. I already had the battery for the fishfinder.



Offline John Gibson

  • Administrator
  • Old School
  • *****
  • Posts: 2546
  • Karma: 29
  • Team CKA
    • Canadian Kayak Anglers
Re: Let there be light.
« Reply #5 on: March 07, 2015, 06:09:10 pm »
oh jeez, that not bad at all.
can you share the rigging process? im intrigued by this.


Ocean Kayak Pro-Staff Member
Aquabound Pro-Staff
Scotty Pro-Staff

Kayaks:
Ocean Kayak Trident Ultra 4.3

Follow CKA on Twitter  @CANkayakanglers

Offline Mtmouse

  • Seasoned Angler
  • ****
  • Posts: 195
  • Karma: 11
Re: Let there be light.
« Reply #6 on: March 07, 2015, 06:37:22 pm »

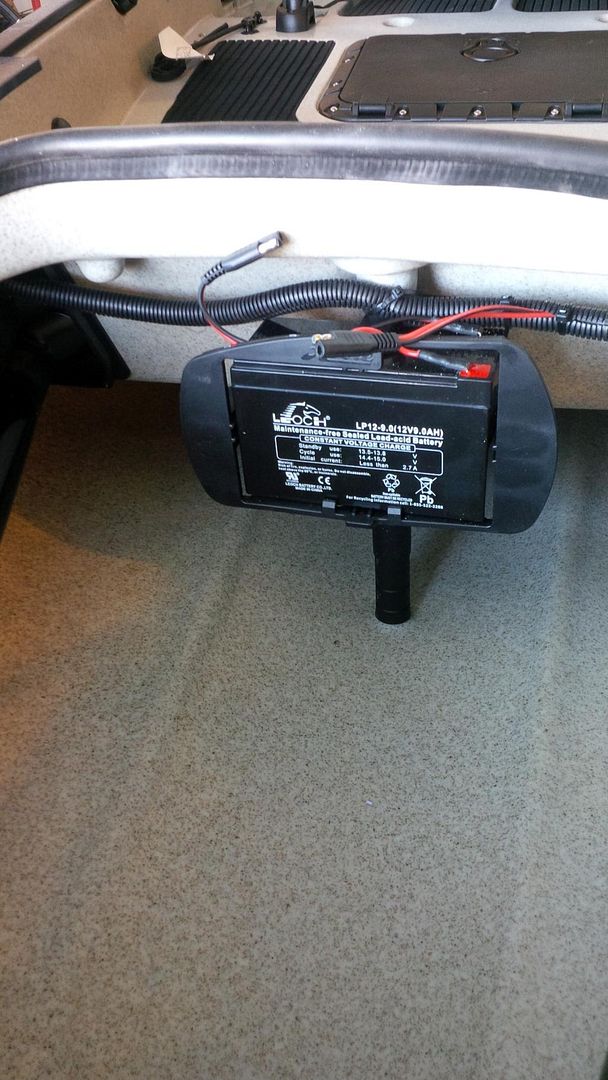

Everything runs off the 12V 9ah battery I have installed up front.



Power runs to switch panel and splits off into the individual switches and USB charge port.



I ran the power from the one switch to the LED lights ($18 at Princess Auto, enough to do both sides.) fastened under the mounting boards.





Ran the power off another switch to the back for the stern light. (just waiting for the mount).



I don't have the Sonar Phone wired up yet, but that will be done next week.
« Last Edit: March 07, 2015, 06:41:26 pm by Mtmouse »



Offline rocketball

  • Old School
  • *****
  • Posts: 566
  • Karma: 6
  • Native Watercraft SLayer Propel 13
Re: Let there be light.
« Reply #7 on: March 08, 2015, 06:25:58 am »
Wow that looks nice...Great work!

Offline John Gibson

  • Administrator
  • Old School
  • *****
  • Posts: 2546
  • Karma: 29
  • Team CKA
    • Canadian Kayak Anglers
Re: Let there be light.
« Reply #8 on: March 08, 2015, 01:20:35 pm »
Thank you for Sharing Sir!


Ocean Kayak Pro-Staff Member
Aquabound Pro-Staff
Scotty Pro-Staff

Kayaks:
Ocean Kayak Trident Ultra 4.3

Follow CKA on Twitter  @CANkayakanglers

Offline Sierra1

  • Local Pro
  • ***
  • Posts: 51
  • Karma: 0
Re: Let there be light.
« Reply #9 on: March 10, 2015, 10:55:20 am »
Very nice set up. I like the USB plug. I've been thinking of doing that now that I'm running the Sonar Phone. Do you think there will be any issues with rain/moisture while charging through the USB?


Sent from my iPhone using Tapatalk

Offline John Gibson

  • Administrator
  • Old School
  • *****
  • Posts: 2546
  • Karma: 29
  • Team CKA
    • Canadian Kayak Anglers
Re: Let there be light.
« Reply #10 on: March 10, 2015, 12:16:42 pm »
Tim can you use the USB connection to charge the battery? perhaps by using solar panels?


Ocean Kayak Pro-Staff Member
Aquabound Pro-Staff
Scotty Pro-Staff

Kayaks:
Ocean Kayak Trident Ultra 4.3

Follow CKA on Twitter  @CANkayakanglers

Offline Mtmouse

  • Seasoned Angler
  • ****
  • Posts: 195
  • Karma: 11
Re: Let there be light.
« Reply #11 on: March 10, 2015, 05:54:57 pm »
Do you think there will be any issues with rain/moisture while charging through the USB?

I'm not concerned with moisture; if it rains, I just won't have anything plugged into it and have the cover on it.


Tim can you use the USB connection to charge the battery? perhaps by using solar panels?

I'm not sure about charging the battery back through the USB port. I don't expect I will be needing to with the 9ah battery, I should be able to get through the whole day on it...if not a couple.



Offline gdawg

  • Greenhorn
  • *
  • Posts: 3
  • Karma: 0
Re: Let there be light.
« Reply #12 on: March 11, 2015, 06:07:14 am »
Wow! Excellent job and great idea.

Offline Mtmouse

  • Seasoned Angler
  • ****
  • Posts: 195
  • Karma: 11
Re: Let there be light.
« Reply #13 on: March 11, 2015, 08:27:47 am »
Wow! Excellent job and great idea.

Thanks

The all-round pole light is now wired and mounted.



« Last Edit: March 11, 2015, 08:46:15 am by Mtmouse »



Offline Yakman

  • Seasoned Angler
  • ****
  • Posts: 115
  • Karma: 2
  • Keep your line in the water
Re: Let there be light.
« Reply #14 on: February 09, 2016, 11:22:41 pm »
Wow great job
well done..
